datalogic410物流固定读码器,工业条码扫码器,二维码扫描器

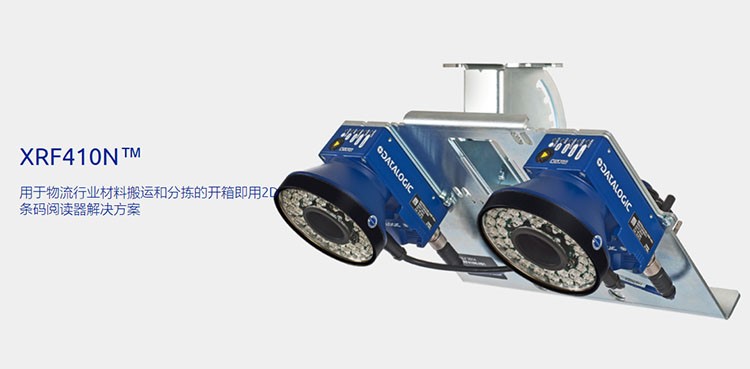

datalogic410物流固定读码器
信息:

    XRF410N™以其更大的阅读范围而命名,是一个基于Matrix 410N™平台的解决方案,用于物流行业的材料搬运和分拣。XRF410N™为各种物料的搬运应用而设计制造,中型物体运输速度可达2.2 m/s (433 fpm),典型扫描深度400 mm (15.7 in.)。TheXRF410N™是电子商务小型物件订单自动执行系统或邮政物流分拣应用的解决方案。

特点/优势:

    XRF410N™是一款功能齐全的Matrix解决方案,在工厂进行预组装和配置,简化了现场快速安装。

    XRF410N™运行Datalogic得利捷解码引擎,能够成功扫描难以阅读、损坏或质量差的条码

    CBX500接线盒可选配显示器和存储器块,以便在出现故障时自动更换阅读器。专利绿点提供良好的读取反馈,便于验证。

    无需进行技术分析。只需条码尺寸、输送机宽度和速度,即可确定XRF410N™的正确版本...,它只是一个单一的部件号!

    采用申请专利中的PackTrack 2D技术,XRF410N非常适合内部短距离间隙的高速分拣(如交叉带、拼合盘)

    XRF410N™配备了DL.CODE软件,通过实时图像显示、图形配置、嵌入式阅读统计和诊断功能,使用更加轻松愉快

应用:

Thisproduct series has been developed to satisfy to requirements of the followingreference applications:

    E-Commerce

    XRF410Nis the perfect solution for ECommerce, with a reconfigured retail code EAN/UPC0.25 mm (10 mil) resolution, a small cell gap with 2D PackTrack software andcode reconstruction for polybags.

    General material handling with reusable totes

    XRF410Nis optimal for reusable totes identification over handling systems. Complexoperations including scanning the objects inside totes are simplified by theXRF410N’s large, real time Depthof Field (DOF).

    End-of-line

    XRF410Nis designed to fit medium speed material handling, such as end-of-linemanufacturing, with a price level equivalent to entry-level scanningtechnology.

    Postal Sorting

    XRF410Nis optimal for top reading of flyers, letters and small parcels typical in thepostal environment.

    Medium object sortation for couriers

    XRF410Nis a perfect fit for medium size conveyors in logistics productions.

    For instance, a single XRF410N covers a 600 mm conveyor with, with a DOF of 400at 2.2 m/s.

产品序列提供以下型号:

产品订货号 产品描述
XRF Modules
937400028 RF410N-B00 2HD_MED RES_MASTER
937400029 XRF410N-B10 2HD_HI RES_MASTER
937400030 XRF410N-H00 2HD_HI PERF_MED RES_MASTER
937400031 XRF410N-H10 2HD_HI PERF_HI RES_MASTER
937400032 XRF410N-H20 2HD_HI PERF_VHI RES_MASTER
937400033 XRF410N-B01 2HD_MED RES_EXTENSION
937400034 XRF410N-B11 2HD_HI RES_EXTENSION
937400035 XRF410N-H01 2HD_HI PERF_MED RES_EXTENS
937400036 XRF410N-H11 2HD_HI PERF_HI RES_EXTENS
937400037 XRF410N-H21 2HD_HI PERF_VHI RES_EXTENS
Pre-assembled spare parts
937400038 MATRIX 410N XRF-B0x SPARE UNIT-REPLMNT
937400039 MATRIX 410N XRF-B1x SPARE UNIT-REPLMNT
937400040 MATRIX 410N XRF-H0x SPARE UNIT-REPLMNT
937400041 MATRIX 410N XRF-H1x SPARE UNIT-REPLMNT
937400042 MATRIX 410N XRF-H2x SPARE UNIT-REPLMNT
